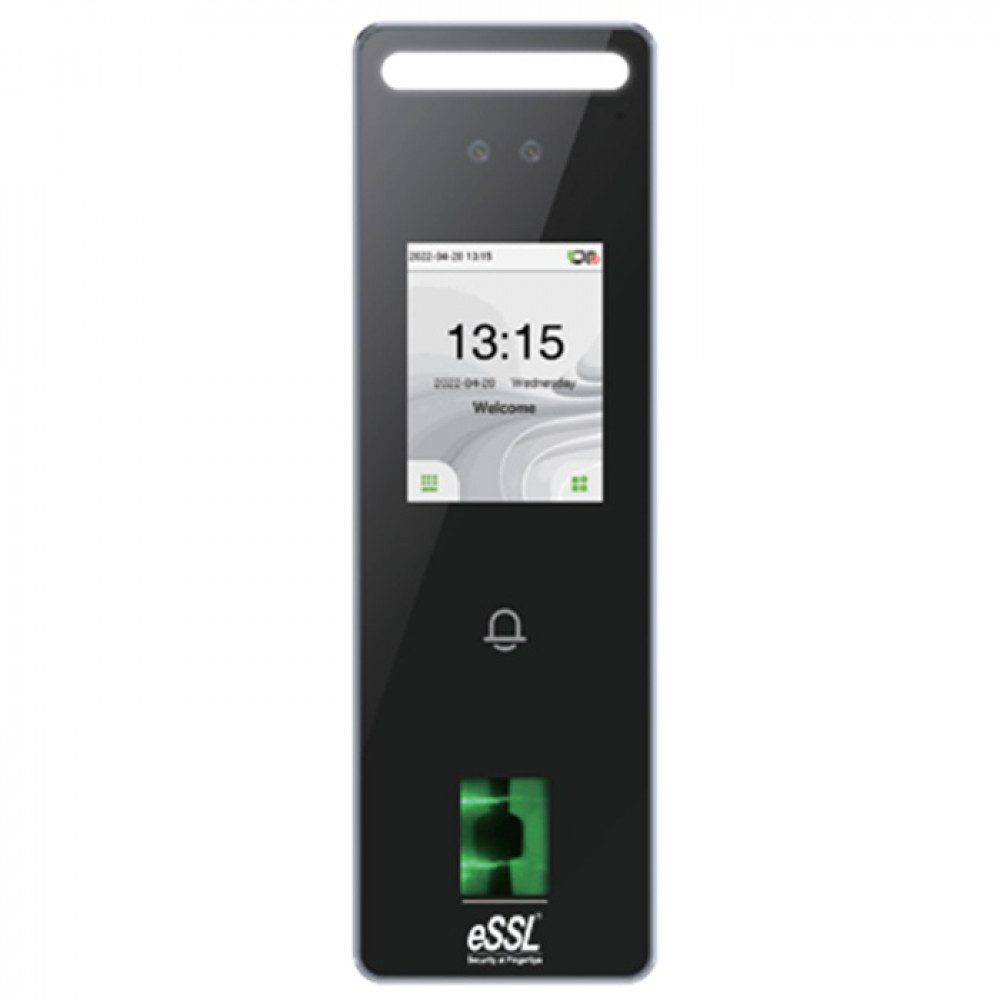

eSSL Multi-Biometric Time Attendance & Access Control System AiFace Magnum

FACE - AIFACE MAGNUM

• IP65 water and dust resistance
• Operating temperature from -5°C to 45°C
• Support Facial / Fingerprint / RFID
• Available card modules: 12.5 KHz ID card / 13.56 MHz IC card
• Fill Light with adjustable brightness
• On-board web server for system configuration
• Face Capacity: 1500
• Fingerprint Capacity: 5000
• Card Capacity: 10,000
• Transaction Capacity: 200,000
• Display: 2.4-inch touch Screen
• Facial Recognition Algorithm: eSSLFace 3.5
• Facial Recognition Speed: < 1s
• Facial Recognition Distance: 0.5m to 2m
• Communication: TCP/IP, WiFi (optional), Wiegand input/output, RS485
• Operation System: Linux
• Standard Functions: ADMS, DST, Camera, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Anti-Passback
• Hardware: 1.2GHz Dual Core CPU, 256MB RAM/512MB Flash, 1MP Binocular Camera Adjustable LED Fill Light
• Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
• Power Supply: 12V 3A
• Ingress Protection Rating: IP65
• Operating Temperature: -5°C to 45°C
• Operating Humidity: 10% to 90% RH
• Dimensions (L*W*D): 185*58.5*20 mm
• Operating Temperature: -5°C to 45°C

DATASHEET
